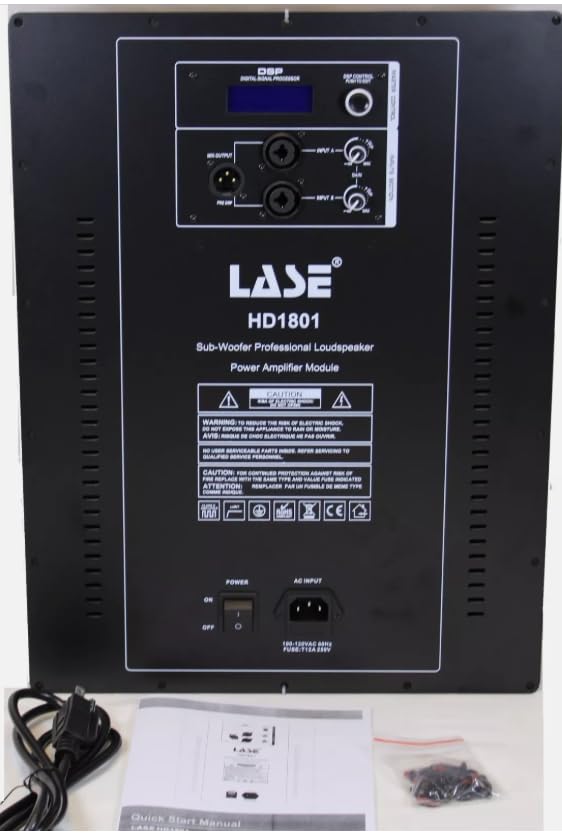

LASE Power Amplifier Module Mackie HD1801 w/DSP Sub-Woofer (110V)
Product details
| Management number | 221445524 | Release Date | 2026/05/03 | List Price | US$143.60 | Model Number | 221445524 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LASE Designed SUB Woofer Power Amplifier Module HD1801 with DSP. for Mackie HD1801 Powered Sub Woofer Power Amplifier Module. Completely Enclosed for easy installation. Reliable sound quality. Class D wiring amplifier. Efficient cooling system,100% pure copper heat sink with Fan XLR input and link connectors. Low-Pass Filter 80Hz -150Hz 24db/oct. Comprehensive protection and warning.
- Power Rated @ 8 Ω ONLY. Output Power : (LF) 8ohm(THD+N<1%) Power Output : 1000W RMS 2000W Peak Power DSP Mode : Music/Live/DJ.
- Volume Control : Line Volume. Frequency Response: 20Hz.....500Hz 24db/oct. THD : 20Hz - 500Hz for 1W<0.1% Residual Noise(Short Circuit input) : <5mV A
- Signal-to-Noise Ratio : >112 dBA Sensitivity :Line: - 10dBu ±1dB @100Hz Channel separation : (Crosstalk) at 1 kHz >70 dB Input Connectors (per channel) : 3-pin XLR Combo / 1/4"Phono, electronically balanced Output Connector : 3-pin XLR.
- Protection : DC / Short circuit/High Temp./Input/Output Overload Protect. Soft Startup Protect : 1-2 sec. Wiring Class : TD Operating voltage : AC 115V 50Hz/60Hz. NOT OPERABLE @ 220V 50Hz/60Hz.
| UPC | 810175750163 |
|---|---|
| Model | 110V |
| Brand Name | LASE |
| Part Number | EKX12P/15P |
| Manufacturer | LASE |
| Output Power | 1000 Watts |
| Mounting Type | Freestanding |
| Specification Met | FCC |
| Number of Channels | 1 |
| Included Components | Amplifer Module |
| Operating Temperature | 20 Degrees Celsius |
| Maximum Supply Voltage | 115 Volts (AC) |
| Minimum Supply Voltage | 115 Volts (AC) |
