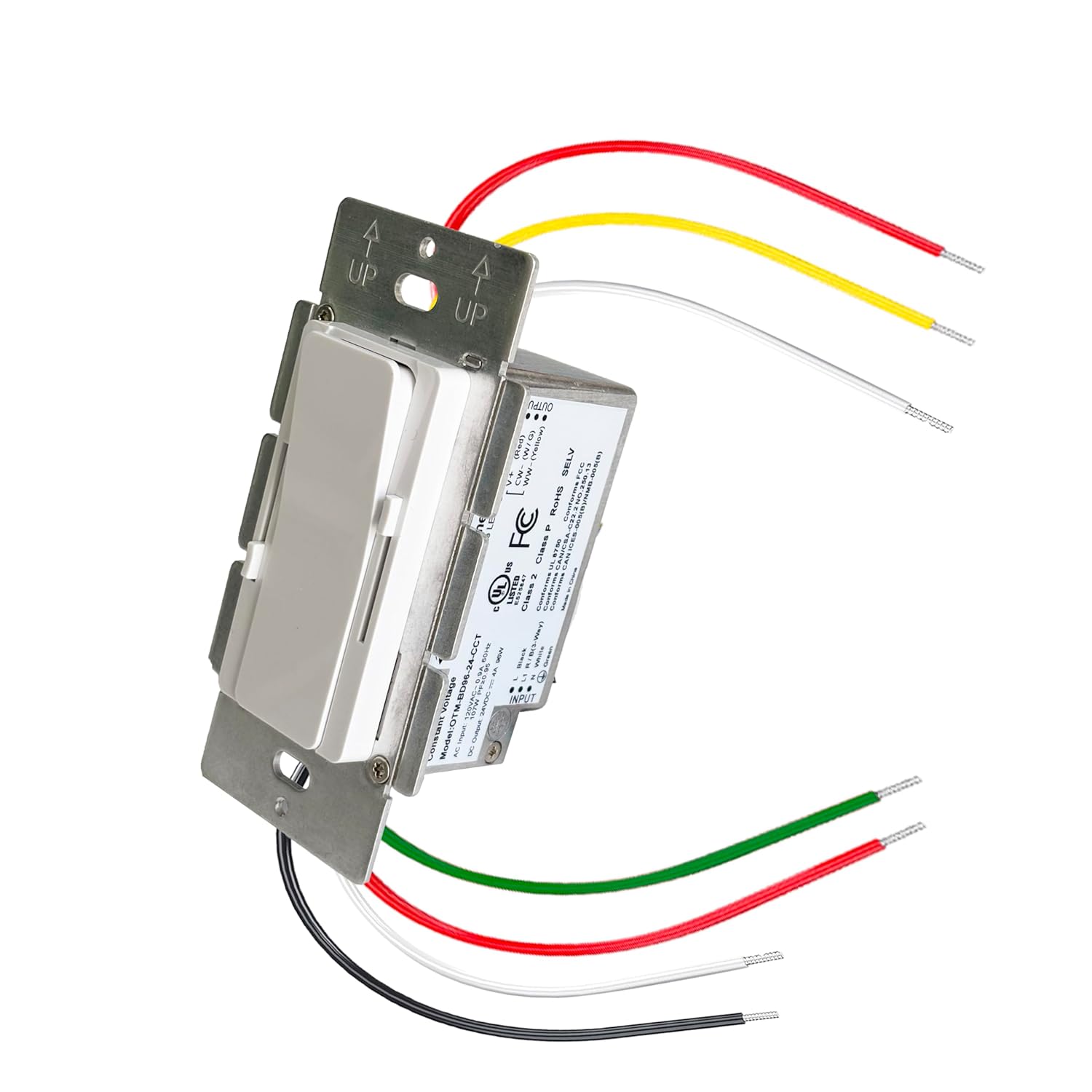

24V 96W CCT Dimmable LED Driver and Dimmer Switch 2 in 1 Unit, 120V AC to DC Power Supply with ON/Off, Single-Pole/3-Way, for Tunable White LED Strips, UL Listed Class 2
Product details
| Management number | 219159206 | Release Date | 2026/05/03 | List Price | US$55.92 | Model Number | 219159206 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- All-in-One Solution: Eliminate compatibility headaches! Our integrated 96W 24V CCT turnable LED driver, controller switch, guaranteeing a perfectly matched system. The built-in on/off switch with memory function adds ultimate convenience to your lighting project.
- Advanced Dimming & CCT Control: Achieve the perfect ambiance. Enjoy ultra-smooth, flicker-free dimming from a deep 0.3% to 100%, powered by high-frequency 16KHz PWM. Seamlessly adjust color temperature from warm to cool white, creating dynamic lighting for any mood or task.

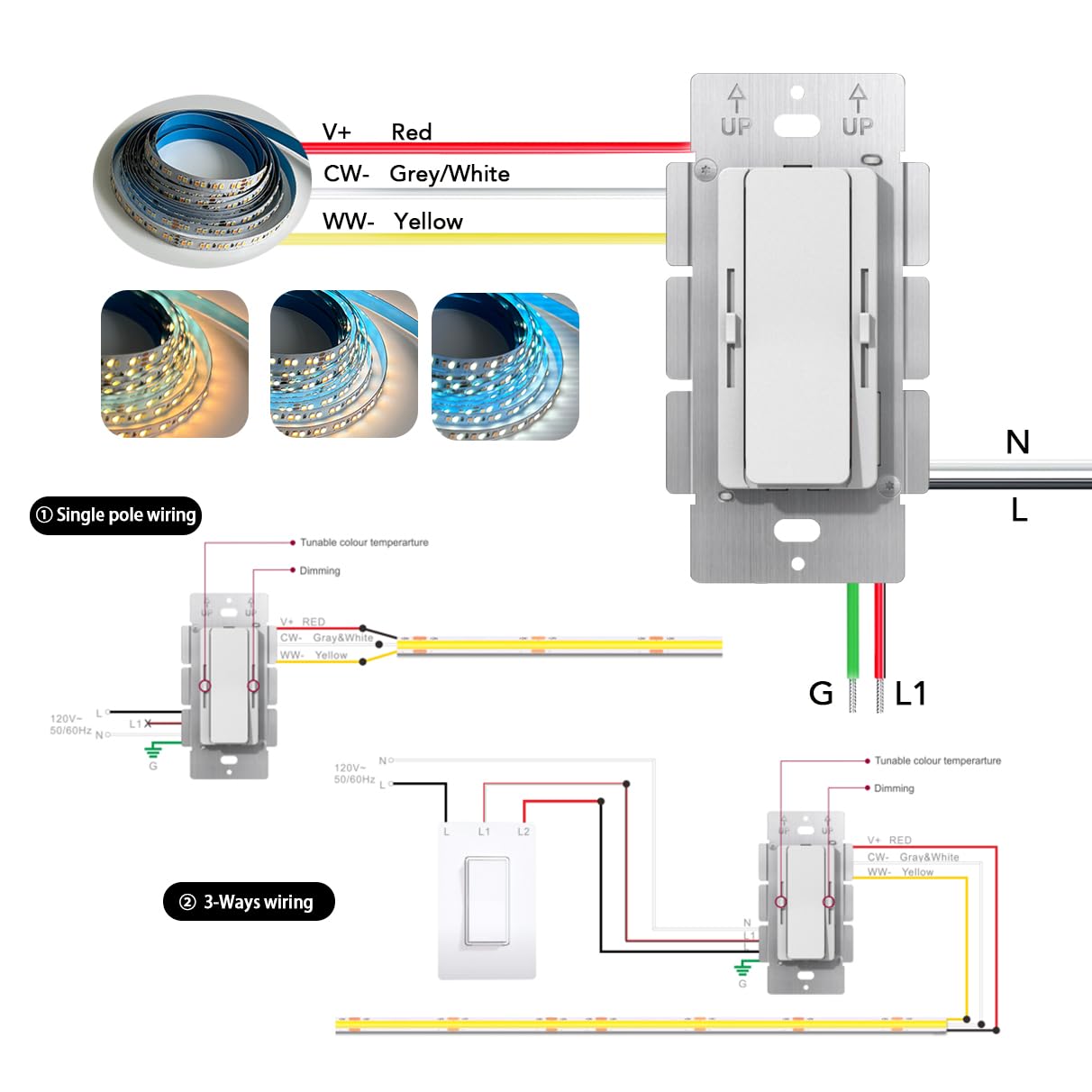

- Single-Pole/3-Way: The dimmer switch can be used in single-pole or 3-Way applications with a mechanical switch, and it's active PFC for high efficiency and stable power. The unique fine-tune adjustable output voltage ensures precise power delivery for your LEDs, while the Gamma 2.2 dimming curve provides a natural, eye-pleasing experience.
- Safe & Durable for Any Location: UL Listed and Class 2 certified for your peace of mind. Equipped with full protection against short circuits, overload, and over-temperature. Its damp location rating makes it perfect for kitchens, bedrooms, and covered outdoor areas.
- Industry-Leading 5-Year Warranty: We stand behind our quality. This driver is built for longevity and backed by a comprehensive warranty, ensuring you get a reliable, long-lasting solution for all your low-voltage LED lighting applications.
| Color | White |
|---|---|
| Model | OTM-BD96-24-CCT |
| Wattage | 96 watts |
| Terminal | Screw |
| Brand Name | OTTIMA |
| Unit Count | 1.0 Count |
| Item Weight | 0.45 Pounds |
| Part Number | OTM-BD96-24-CCT |
| Switch Type | Push Button |
| Circuit Type | 3-way |
| Contact Type | Normally Closed |
| Control Type | User Controlled |
| Manufacturer | OTTMA |
| Actuator Type | Push Button |
| Material Type | Metal, Plastic |
| Mounting Type | Wall Mount |
| Connector Type | 120vac to 24vdc |
| Control Method | Push Button |
| Current Rating | 4 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 2.12 x 1.99 x 4.13 inches |
| Number of Items | 41 |
| Contact Material | Plastic |
| Operating Voltage | 120 Volts |
| Specification Met | ETL, FCC, cULus |
| Compatible Devices | 24V CCT LED light strip, 24V CCT Tunable LED Strips, 24V Dual-color Temperature LED Panel Light, 24V Low-voltage Color Temperature Adjustment Module |
| Included Components | Birrer * 2pcs, Mounting Screw * 2pcs, Wire Nut * 8pcs |
| Number of Positions | 1 |
| Warranty Description | 5 Year Manufacturer |
| Insulation Resistance | 100 Ohms |
| Upper Temperature Rating | 100 Degrees Celsius |
| Compatible with Vehicle Type | CCT Tunable LED Application |
| International Protection Rating | IP40 |
